SPECIFICATIONS
specifications are subject to change.
Specifications

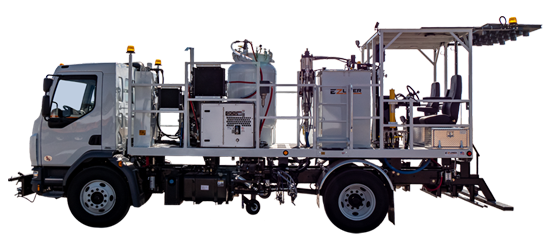

- Peterbilt Model 220 with GVWR derated to 26,000lb, front GAWR 12,000lb, rear GAWR 21,000lb, 170” wheelbase, horizontal exhaust, PACCAR Model PX-7, 6.7 liter diesel 6-cylinder engine, 220 hp 2,400 rpm, 600 lb/ft of torque 1600 rpm, 6-speed Allison Model 2500RDS-P automatic transmission, Hendrickson air ride rear suspension, air disc front brakes, air cam rear drum brakes
- Capable of applying 4” to 8” wide retro-reflective lines with spacing between lines from 0” to 6”
- Independent carriage steering systems allow individual adjustment of the gun carriages
- Municipal type gun carriage centerline and edge line carriages mounted in front of the rear axle
- Three (3) Graco Model 238-377 paint guns with XHD-555 heavy duty reversible spray tips on each carriage
- A stainless-steel paint tank with two color sections. Each section holds a volume of 150 gallons for a total volume of 300 gallons
- A 2500lb. ASME certified bead tank with three (3) 2” diameter sight glasses
- A Cummins Model QSF2.8-74 Tier 4 Final 74 hp diesel auxiliary engine with 120-amp alternator
- Two (2) Skip-Line, Inc. Model SC-12 four-line controllers are included.
